Tungsten Carbide Valve Seat and Valve Ball

Made of tungsten carbide alloy, the hardness far exceeds that of ordinary materials, ensuring excellent sealing performance, wear resistance, and corrosion resistance. Tungsten carbide valve seats and balls are critical components in high-pressure, high-wear, and corrosive environments, providing stable and reliable operation for industrial valves.

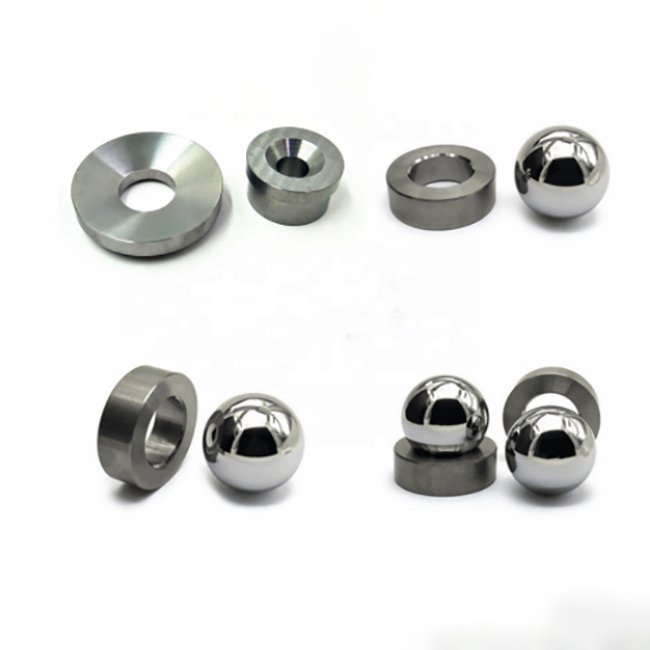

Valve Seat and Valve Ball Types Kedel Provides for You

Tungsten carbide valve seats and balls are widely used in multiple industrial fields such as petroleum, chemical, natural gas, and power generation industries. Their high hardness, wear resistance, and corrosion resistance make them key components for ensuring valve sealing and service life.

Uncover Your Needs with Us!

Please provide your equipment information, relevant standards for tungsten carbide valve seat and valve ball, operating environment conditions (such as pressure, temperature, medium characteristics), and other customized requirements. We will communicate with you about the engineer’s customized solution (including dimensional drawings, material recommendations, performance – optimized designs, and cost budget) for tungsten carbide valve seat and valve ball within 72 hours.

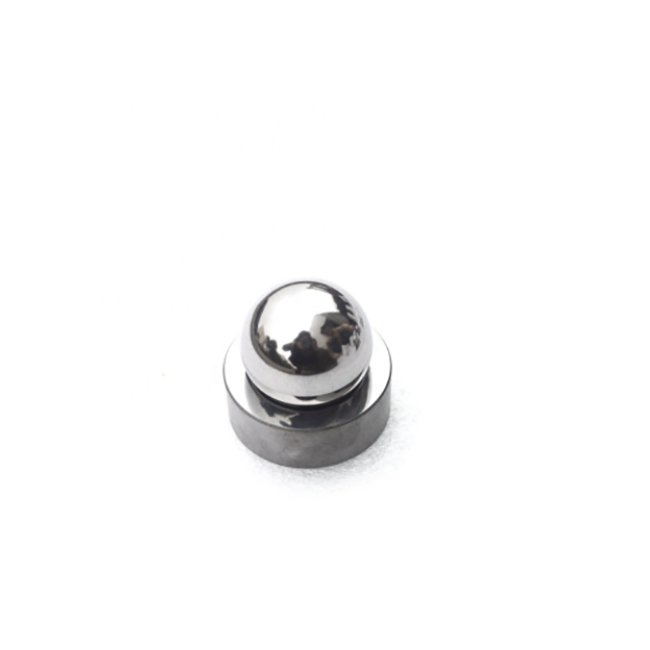

What is a tungsten carbide Valve Seat and Valve Ball?

Tungsten carbide valve seats and balls are critical components for industrial valves, engineered to ensure leak-proof sealing, exceptional wear resistance, and corrosion tolerance in extreme conditions. Manufactured from tungsten carbide alloys (WC-Co/Ni), their hardness (1500–2300 HV, up to 2500 HV for ultrafine grains) far exceeds standard materials, making them indispensable in high-pressure, abrasive, or chemically aggressive environments.

Manufacturing Process

Powder Metallurgy: Tungsten carbide powder is mixed with cobalt/nickel binders (85–99% WC content).
High-Pressure Sintering: Preforms are pressed at >300 MPa and sintered at 1400–1600°C to form a dense, pore-free structure.
Precision Machining: Sealing surfaces are ground and lapped to Ra ≤ 0.2μm, ensuring micron-level accuracy for optimal sealing.

Essentially, tungsten carbide valve seats and balls, thanks to their distinct functions and advanced manufacturing, become indispensable parts in valves. This is especially true in harsh working environments, as they ensure the stable and efficient operation of valve systems.

What Materials Are Commonly Used in Production?

Each material has different characteristics, and selection needs to be based on valve working conditions, cost budget, etc., to ensure a balance between the performance, service life, and economy of valve balls and seats.

Tungsten Carbide (Cemented Carbide)

Hardness and Wear Resistance: With a hardness ranging from 2000–2500 HV, it is second only to diamond and boasts excellent wear resistance (★★★★★). It can withstand long – term erosion from solid particles such as sand – laden mud and mineral slurry, making it suitable for high – wear and high – pressure scenarios like oil drilling and mining hydraulic cutting. It is also often used to manufacture valve balls and seats with high wear – resistance requirements, suiting harsh working conditions.
Corrosion Resistance: Cobalt – based tungsten carbide has moderate corrosion resistance (★★★★☆); nickel – based formulations significantly enhance acid/alkali resistance, making it suitable for moderately corrosive environments such as acidic oilfields.
Cost: The initial cost is high, but its service life is 5–10 times that of ordinary materials, providing significant long – term cost advantages.
Typical Applications: Oil drilling nozzles, wear – resistant conveying nozzles in mining, high – pressure waterjet cutting heads. It is also frequently used to make valve balls and seats with high wear – resistance requirements, suiting harsh working conditions.

Ceramic (e.g., Silicon Nitride)

Hardness and Wear Resistance: The hardness reaches 1200–1800 HV, with excellent wear resistance (★★★★☆). It has a low friction coefficient and strong resistance to solid particle erosion and high – temperature wear, suiting high – speed fluid and high – temperature working conditions.
Corrosion Resistance: It has extremely high chemical stability (★★★★★) and hardly reacts with acids, alkalis (except for strong oxidizing acids), and organic solvents, suiting extreme corrosive environments.
Cost: The initial cost is high (due to the difficulty of precision processing), but its low wear characteristics can reduce the frequency of long – term replacements, and it has outstanding cost – effectiveness in high – temperature scenarios.
Typical Applications: Valve balls and seats in high – temperature steam valves and valves for highly corrosive chemical media, as well as special valve components in the aerospace and nuclear energy fields.

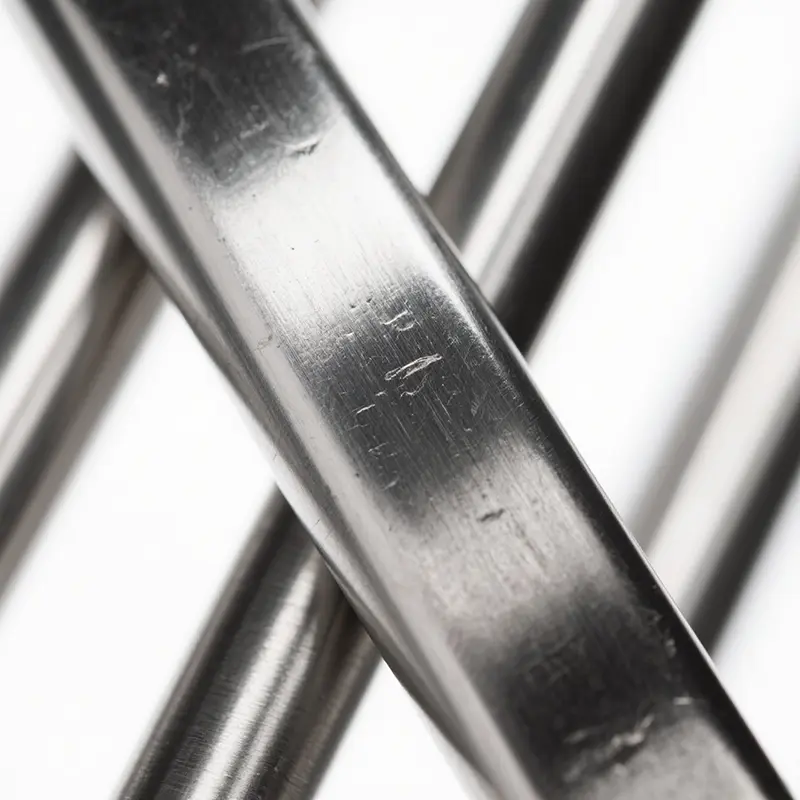

Stainless Steel (e.g., 316L)

Hardness and Wear Resistance: The hardness is approximately 180–220 HV (can reach 300–500 HV after surface hardening), with moderate wear resistance (★★★☆☆). It can remain stable in medium – low pressure and low – wear environments, suiting general industrial fluid control.
Corrosion Resistance: It has good resistance to corrosion from acids, alkalis, salt spray, etc. (★★★★★). In particular, 316L contains molybdenum, which provides strong resistance to corrosion from seawater and chemical media, suiting scenarios in the food, pharmaceutical, and marine engineering industries.
Cost: The initial cost is moderate, it is easy to process and maintain, and the long – term cost is controllable under normal working conditions.
Typical Applications: Valve balls and seats in the food and beverage industry valves, control valves in chemical pipelines, as well as special valve components in offshore platforms and drinking water treatment where high corrosion resistance is required.

Carbon Steel (e.g., A105)

Hardness and Wear Resistance: The hardness is approximately 150–200 HB (can reach 250–350 HB after quenching and tempering), with general wear resistance (★★★☆☆). It relies on surface treatments (such as carburizing and nitriding) to improve wear resistance, suiting medium – low pressure and clean medium working conditions.
Corrosion Resistance: It has poor corrosion resistance (★★☆☆☆) and is prone to rust. It requires coatings (galvanizing, painting) or linings for protection and is only suitable for dry and weakly corrosive environments.
Cost: The initial cost is low, it is easy to process, and maintenance is simple under normal working conditions, making it suitable for general – purpose valves sensitive to cost.
Typical Applications: Valve balls and seats in ordinary industrial water system valves and low – pressure steam valves, as well as scenarios with high cost sensitivity such as construction and municipal water supply and drainage.

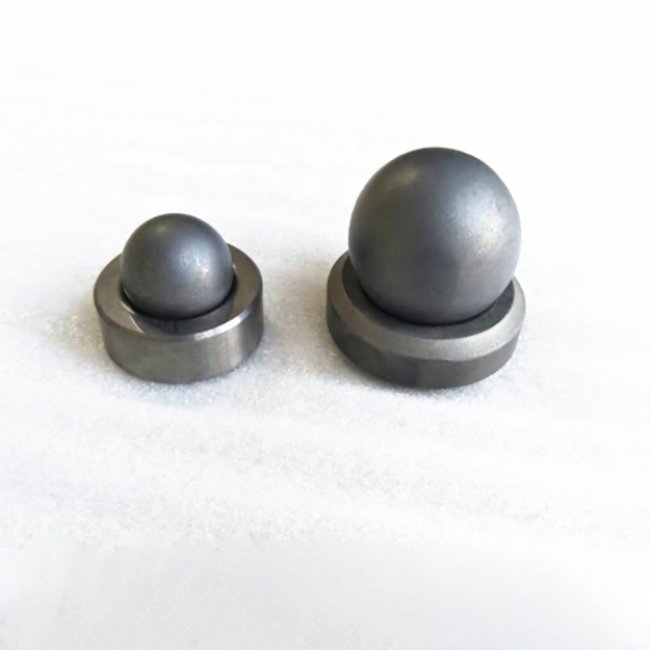

Common Valve Seat and Valve Ball Structures

The structural design of tungsten carbide valve seats and balls directly determines the sealing performance and reliability of valves under extreme working conditions. The following is an analysis of the core characteristics of two typical structures — the Floating Valve Seat and the Fixed Valve Seat. It helps you to accurately select the type according to the actual working conditions.

Floating Valve Seat

Structural Feature：The seat can axially float within a certain range. It relies on medium pressure or spring force to press against the valve ball, automatically compensating for sealing pair wear and pipeline installation deviations. Simple structure, with good adaptability to misalignment.
Functional Advantage：Enables reliable sealing under variable pressure conditions. Effective in compensating for ball/seat wear, maintaining long – term sealing performance. Low friction during movement, reducing valve operating torque.
Typical Applications：Common in general – purpose industrial valves (e.g., water, gas pipelines), oil/gas field production valves, and medium – pressure process control valves.

Fixed Valve Seat

Structural Feature：Rigidly fixed to the valve body (via threads, bolts, or interference fit). Position remains stable, forming a fixed sealing pair with the valve ball. High structural strength, suitable for high – pressure/high – impact scenarios.
Functional Advantage：Provides high – pressure resistance, withstanding extreme pressure differentials without deformation. Stable sealing, ideal for critical applications (e.g., high – pressure gas pipelines, cryogenic valves). Precisely controlled sealing clearance for low – leakage/high – purity systems.
Typical Applications：Used in high – pressure pipeline valves (e.g., natural gas transmission), cryogenic valves (LNG equipment), and nuclear industry safety valves.

Application Scenarios of Valve Seat and Valve Ball

Tungsten carbide valve seats and balls play a vital role in industrial valve systems, ensuring tight sealing and long-term reliability in harsh conditions.

Oil and gas industry

Chemical industry

Pipeline transportation industry

What You Need to Know About Common Nozzle Parameters

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Dimensional parameters
- Nominal diameter (DN): Such as DN15, DN20, DN25, etc., measured in millimeters, which determines the flow capacity of the valve. The larger the diameter, the smoother the fluid passes. Small diameters can be as low as DN6, and large diameters can reach up to DN900.
- Connection dimensions: Include dimension standards for flange, thread, socket weld, etc. Taking flange connection as an example, it involves flange outer diameter, bolt hole center distance, number of holes, and diameter, etc., which need to be adapted to the pipeline.
Pressure parameters
- Nominal pressure (PN): Such as PN1.0MPa, PN1.6MPa, etc. It is the maximum allowable working pressure at a specified temperature, reflecting the pressure – bearing capacity of the valve. There are also pressure class expressions such as ANSI CLASS 150 – 900 and JIS10 – 20K.
- Working pressure: The pressure actually endured during work, which cannot exceed the nominal pressure and will change with the medium temperature, flow rate, etc.
- Test pressure: To test the strength and tightness. The shell test pressure is generally 1.5 times the nominal pressure, and the sealing test pressure is usually 1.1 times the nominal pressure.
Material parameters
- Valve body material: There are cast iron, cast steel, stainless steel (304, 316, etc.), alloy steel, etc. Cast iron is economical and suitable for conventional working conditions; stainless steel is corrosion – resistant and used in environments with corrosive media.
- Valve seat (sealing) material: Such as polytetrafluoroethylene (PTFE), which has a low friction coefficient and good chemical stability; fluororubber (FKM) has high temperature resistance and chemical corrosion resistance, and there are also hard alloys such as tungsten carbide, used in high – pressure and wear – resistant scenarios.
- Ball core material: It is usually the same as the valve body material or a more wear – resistant and corrosion – resistant material is selected, such as carbon steel, stainless steel with surface hardening treatment, or tungsten carbide, etc., to ensure strength, wear resistance, and sealing life.
Performance parameters
- Leakage class: Reflects the sealing performance. It is divided into levels Ⅰ – Ⅵ according to standards (such as ANSI B16.104). The higher the level, the smaller the leakage and the better the sealing.
- Flow coefficient (Cv/Kv): Reflects the ability of fluid to pass through. The larger the Cv value, the more fluid passes through under the same pressure difference.
- Opening and closing time: The time required for the valve to go from fully closed to fully open or vice versa, measured in seconds. The quick – cut – off valve has a short opening and closing time, usually within a few seconds.
- Service life: The number of uses or time to ensure reliable performance under normal work, affected by material, working conditions, maintenance, etc., in units of times or years.
Drive and control parameters (if there is a drive device)
- Drive method: Manual, worm gear drive, pneumatic, electric, hydraulic, pneumatic – hydraulic/electro – hydraulic linkage, etc.
- Power supply voltage (for electric drive): Common ones are AC220V, AC380V, DC24V, etc., which need to match the electric actuator.
- Motor power: The power consumption of the electric actuator, related to the valve size, working pressure, opening and closing speed, etc., in watts (W) or kilowatts (kW).
- Control signal: There are switch signals (on, off signals) and analog signals (4 – 20mA, 0 – 10V, etc.) for remote control of valve opening, closing, and opening degree adjustment.
Applicable working condition parameters
- Applicable temperature: The range is wide, such as – 196℃ (low – temperature working condition) to 540℃ (high – temperature working condition). Different materials and structures are adapted to different temperature ranges.
- Applicable medium: Water, steam, oil products, nitric acid, acetic acid, natural gas, etc. Corresponding materials and structures of ball valves are selected according to the medium characteristics.

What Products Are Commonly Used For?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Oil Production Wellheads

Application: Valve systems in onshore/offshore oil wellheads, especially for high-pressure, sand-laden crude extraction.
Role: Seals high-pressure crude (with sand, corrosive gases like H₂S). Withstands cyclic pressure changes during wellhead operations; prevents leaks to ensure safety and production continuity.
Why Choose It: Resists abrasion from sand particles (hardness ≥90 HRA); cobalt/nickel-based grades resist sour corrosion. Maintains sealing integrity 4–6x longer than standard steel seats/balls, reducing maintenance in remote well sites.

Chemical Strong Acid Pipelines

Application: Valve units in sulfuric acid, hydrochloric acid transfer pipelines (chemical plants, fertilizer production).
Role: Seals aggressive acidic fluids (pH ≤2) under high flow rates. Prevents acid leakage to protect personnel and equipment; ensures stable chemical process control.
Why Choose It: Nickel-based tungsten carbide resists strong acid corrosion (e.g., 98% sulfuric acid). Outlasts stainless steel/PTFE seals by 5–8x in acidic media; maintains low friction for smooth valve operation.

Natural Gas Long-Distance Pipelines

Application: Mainline valves in high-pressure natural gas transmission networks (cross-regional, subsea pipelines).
Role: Seals high-pressure methane (up to 10MPa+); endures temperature variations (-40℃ to 80℃). Prevents gas leakage for environmental and safety compliance.
Why Choose It: Ultra-low friction (Ra ≤0.2μm) ensures tight sealing with minimal torque; high hardness resists wear from pipeline debris. Lowers maintenance downtime by 30% vs. metal seals in long-term, high-cycle systems.

What Is the Replacement Cycle?

Tungsten Carbide Valve Seat Ball Valve Replacement Cycle

Application Scenario	Typical Equipment/Component	Replacement Cycle Reference	Factors Impacting the Cycle
Oil & Gas Production (High-pressure wellheads, sand-laden crude pipelines)	Tungsten carbide valve seat/ball	6–24 months	– In high-sand, high-pressure (>30MPa) conditions: Cycle shortens to ~6 months. – In clean, medium-pressure (<10MPa) natural gas pipelines: Extends to 24 months.
Chemical Processing (Acid/alkali transfer pipelines, corrosive reagent valves)	Corrosion-resistant carbide valve assembly	9–36 months	– In strong corrosive media (e.g., concentrated sulfuric acid): Cycle reduces to 9 months. – In neutral media (e.g., pure water) with stable pressure: Lasts up to 36 months.
Mining Slurry Transport (High-concentration mineral slurry pipelines)	Wear-resistant carbide valve set	3–12 months	– In high-concentration (＞50% solid), high-velocity (＞3m/s) slurry: Replacement needed every 3 months. – In low-concentration (＜30% solid), low-velocity (＜1m/s) slurry: Extends to 12 months.
Power Plant Steam Systems (High-temperature steam control valves)	High-temperature carbide valve	12–48 months	– In superheated steam (＞400℃, pressure ＞10MPa): Cycle shortens to 12 months. – In low-temperature (＜100℃), low-pressure (＜2MPa) condensate systems: Lasts up to 48 months.
Marine & Offshore (Seawater desalination valves, offshore platform pipelines)	Marine-grade carbide valve	12–30 months	– In high-salinity, wave-impact environments: Replacement cycle ~12 months. – In protected, low-corrosion onshore auxiliary systems: Extends to 30 months.

Special Notes

Extreme Conditions (e.g., deep-sea high-pressure environments, aerospace cryogenic valves): Cycles may be ＜6 months. Real-time monitoring (acoustic emission, vibration sensors) is critical for timely replacement.
Material Upgrades (e.g., nickel-based carbide coatings, diamond-like carbon (DLC) treatments): Extend service life by 40%–60% in high-corrosion/high-wear scenarios.
Maintenance Practices (regular cleaning, pressure/leakage testing, lubrication for actuators): Enables early failure detection, avoiding unplanned shutdowns. Online condition monitoring (thermal imaging, ultrasonic testing) further optimizes replacement timing.
