Tungsten Carbide Sealing Ring for High-Precision, High-Reliability Sealing Applications

Description

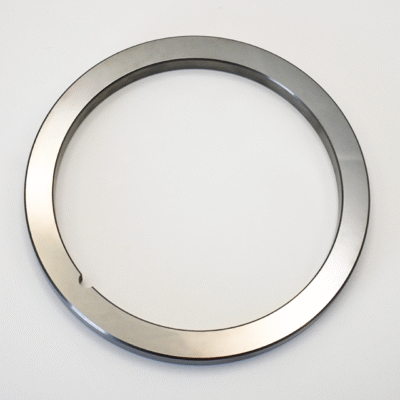

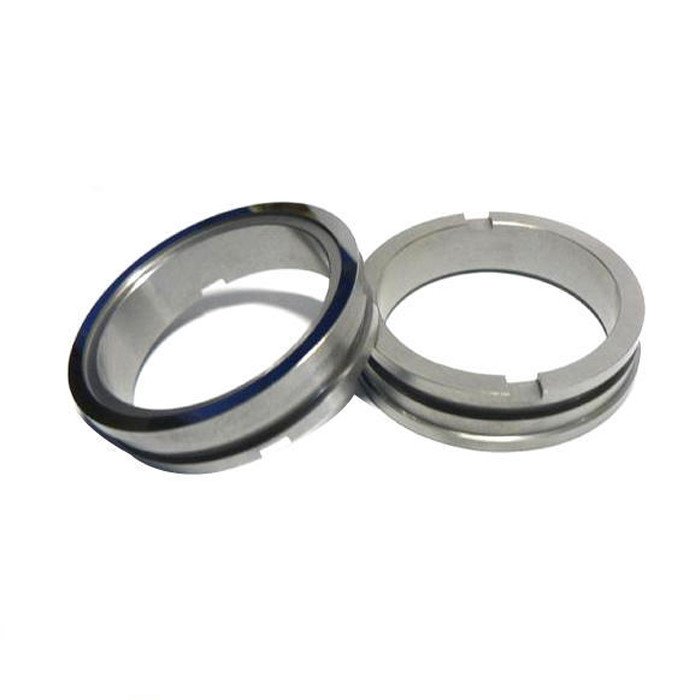

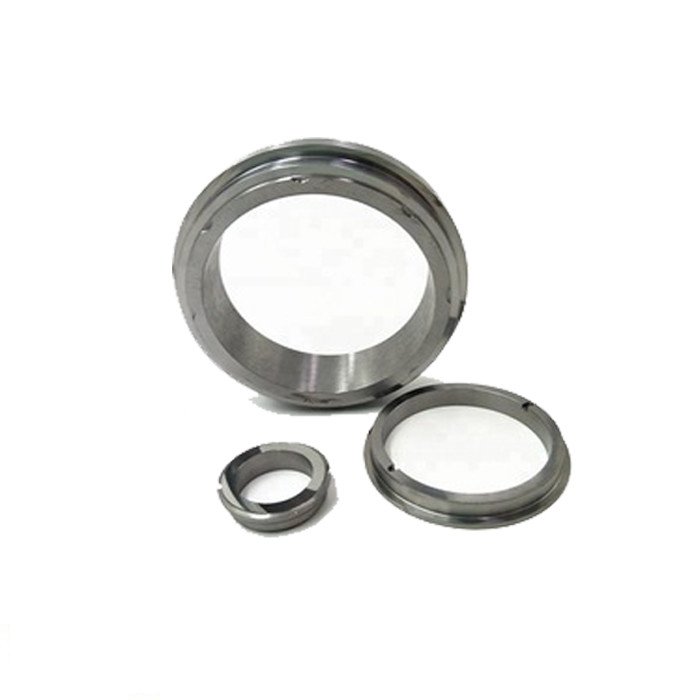

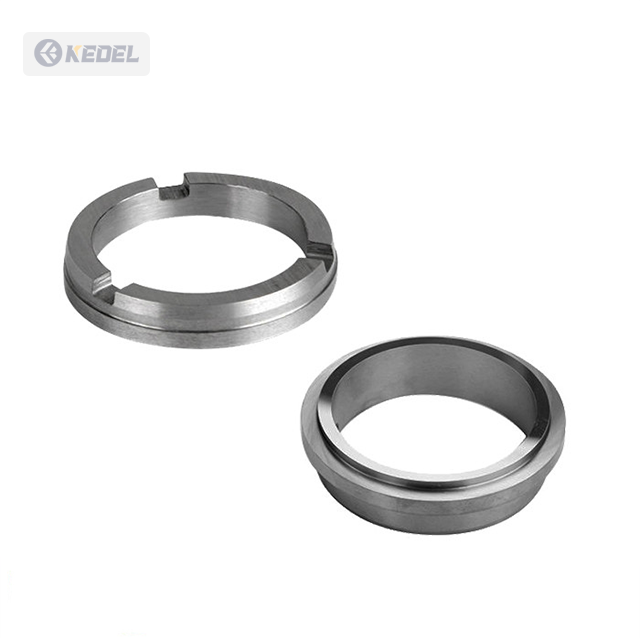

Tungsten carbide alloy Ring

We offer standard tungsten carbide Ring specifications and accept custom orders based on your drawings.

Product Specifications

size	H1			H2					H3
size	d (H13)	D (u6)	H	d (H13)	d1	D (u6)	H	h	d (H13)	d1	D (u6)	H	h
18	19(20)	28(26)	5	19(20)	25(26)	28	5	1.5	19	22	28	5	-
20	21(22)	30(28)	5	21(22)	27(28)	30	5	1.5	21	24	30	5	-
22	23(24)	32(30)	5	23(24)	29(30)	32	5	1.5	23	26	32	5	-
24	25(26)	35(32)	5	25(26)	31(32)	35	5	1.5	25	29	35	5	-
25	26(28)	36(34)	5	26(28)	32(34)	36	5	1.5	26	30	36	5	-
28	29(31)	39(37)	6	29(31)	35(37)	39	6	1.5	29	33	39	6	1.5
30	31(33)	41(39)	6	31(33)	37(39)	41	6	1.5	31	35	41	6	1.5
32	33(36)	43(42)	6	33(36)	39(42)	43	6	1.5	33	37	43	6	1.5
33	34(36)	44(42)	6	34(36)	40(42)	44	6	1.5	34	38	44	6	1.5
35	36(38)	46(44)	6	36(38)	42(44)	46	6	1.5	36	40	46	6	1.5
38	39(41)	50(47)	6	39(41)	45(47)	50	6	1.5	39	44	50	6	1.5
40	41(43)	52(49)	6	41(43)	47(49)	52	6	1.5	41	46	52	6	1.5
43	44(46)	55(52)	6	44(46)	50(52)	55	6	1.5	44	49	55	6	1.5
45	46(48)	57(54)	6	46(48)	52(54)	57	6	1.5	46	51	57	6	1.5
48	49(51)	60(57)	6	49(51)	55(57)	60	6	1.5	49	54	60	6	1.5
50	51(53)	62(59)	6	51(53)	57(59)	62	6	1.5	51	56	62	6	1.5
53	54(56)	65(62)	6	54(56)	60(62)	65	6	1.5	54	59	65	6	1.5
55	56(58)	67(64)	6	56(58)	62(64)	67	6	1.5	56	61	67	6	1.5
58	59(61)	71(68)	6	59(61)	66(68)	71	6	1.5	59	64	71	6	1.5
60	61(63)	73(70)	6	61(63)	68(70)	73	6	1.5	61	66	73	6	1.5
63	64(66)	77(73)	7	64(66)	71(73)	77	7	1.5	64	70	77	7	2
65	66(68)	79(75)	7	66(68)	73(75)	79	7	2	66	72	79	7	2
68	69(73)	82(81)	7	69(73)	77(81)	82	7	2	69	75	82	7	2
70	71(73)	84(81)	7	71(73)	79(81)	84	7	2	71	76	84	7	2
75	76(78)	90(86)	7	76(78)	84(86)	90	7	2	76	82	90	7	2
80	81(83)	97(91)	7	81(83)	89(91)	97	7	2	81	89	97	7	2
85	86(88)	101(96)	7	86(88)	94(96)	101	7	2	86	93	101	7	2
90	91(93)	106(101)	7	91(93)	99(101)	106	7	2	91	98	106	7	2
95	96(98)	111(106)	7	96(98)	104(106)	111	7	2	96	103	111	7	2
100	101(103)	116(111)	7	101(103)	109(111)	116	7	2	101	108	116	7	2

size	H1			H2					H3
size	d (H13)	D (u6)	H	d (H13)	d1	D (u6)	H	h	d (H13)	d1	D (u6)	H	h
105	106(108)	126(117)	8	106(108)	115(117)	126	8	2	106	117	126	8	2
110	111(113)	131(122)	8	111(113)	120(122)	131	8	2	111	122	131	8	2
115	116(118)	136(127)	8	116(118)	125(127)	136	8	2	116	127	136	8	2
120	121(123)	141(132)	8	121(123)	130(132)	141	8	2	121	132	141	8	2
125	126(132)	146(142)	8	126(132)	136(142)	146	8	2	126	136	146	8	2
130	131(137)	151(147)	8	131(137)	141(147)	151	8	2	131	141	151	8	2
135	136(142)	156(152)	8	136(142)	146(152)	156	8	2	136	146	156	8	2
140	141(147)	161(157)	8	141(147)	151(157)	161	8	2	141	151	161	8	2
145	146(152)	168(163)	9	146(152)	157(163)	168	9	2.5	146	157	168	9	2.5
150	151(157)	173(168)	9	151(157)	162(168)	173	9	2.5	151	162	173	9	2.5
155	156(162)	178(173)	9	156(162)	167(173)	178	9	2.5	156	167	178	9	2.5
160	161(167)	183(178)	9	161(167)	172(178)	183	9	2.5	161	172	183	9	2.5
165	166(172)	188(183)	9	166(172)	177(183)	188	9	2.5	166	177	188	9	2.5
170	171(177)	193(188)	9	171(177)	182(188)	193	9	2.5	171	182	193	9	2.5
175	176(182)	198(193)	9	176(182)	187(193)	198	9	2.5	176	187	198	9	2.5
180	181(187)	203(198)	9	181(187)	192(198)	203	9	2.5	181	192	203	9	2.5
185	186(192)	210(204)	10	186(192)	198(204)	210	10	3	186	198	210	10	3
190	191(197)	215(209)	10	191(197)	203(209)	215	10	3	191	203	215	10	3
195	196(202)	220(214)	10	196(202)	208(214)	220	10	3	196	208	220	10	3
200	201(207)	225(219)	10	201(207)	213(219)	225	10	3	201	213	225	10	3
Notes: Note 1: Type H1 is a flat ring without a notch. The data without parentheses is the size of a general narrow ring, and the data in parentheses is the size of a balanced sealed narrow ring; Note 2: Type H2 is the size of an unbalanced seal. The data without parentheses is the size of an unbalanced sealed narrow ring, and the data in parentheses is the size of an unbalanced sealed large end; Note 3: The unbalanced seal specification (without a notch) is the outer diameter. The data without parentheses is the size of the sleeve, and the data in parentheses is the size of the shaft; Note 4: The size of the ≤120 balanced seal shaft (or bushing) is consistent with the standard GB/T 6556 (mechanical seal type, main size, material and identification mark); for specifications ≥125, the size of the sleeve is in 10 steps, for example, the large end of φ125 is φ135, and the large end of φ130 is φ140; Note 5: The H1 type is a flat ring size, and the data in the parentheses, for example, the big end of φ125 is φ135, and the big end of φ130 is φ140. Note 6: The size of the ≤120 balanced seal shaft (or shaft with the specification ≥125 or more) has the sleeve size in 10 steps, for example, the big end of φ125 is φ135, and the big end of φ130 is φ140.

Specification	Dimensions and tolerances (mm)
	D (H13)	D (h7)	L
14	15	23	4
16	17	25
18	19	29
20	21	31
22	23	33	4.5
24	25	35	4.5
25	26	36	6
28	29	39	6
30	31	41	7
32	33	44
33	34	44
35	36	46
38	39	51
40	41	53
43	44	56
45	46	58
48	49	61	7.5
50	51	65
53	54	68
55	56	70
58	59	73
60	61	75
63	64	78	9
65	66	80
68	69	83
70	71	87
75	76	92
80	81	99
85	86	103	10
90	91	109
95	96	114
100	101	119

Grade

Grade	Composition (%)			Density (g/cm³)	Hardness (HRA)	Transverse Rupture Strength (2N/mm²)	Average Grain Size (μm)	Grain Size (μm)
Co	Dopant	Balance
YG6	5.8-6.3	/	WC	14.6-15.0	89.5-91	1800	1.2	0.8-2.0
YG6X	5.8-6.3	0.5	WC	14.4-14.7	90.5-91.5	1650	0.8	0.6-1.0
YG8	7.5-8.2		WC	14.4-14.7	89.0-90.5	2200	1.2	1.0-1.5
YG11	11.0-11.5		WC	14.2-14.4	87.0-88.5	2800	1.2	1.0-2.0
YG11C	11.0-11.5		WC	14.2-14.4	86.0-88.0	3000	1.5	1.0-2.5
YG15	14.5-15		WC	13.9-14.0	86.0-88.0	3300	1.2	1.0-2.0
YG20	20.0-20.5		WC	13.2-13.5	84.0-85.0	3400	1.2	1.0-2.0
YG20C	20.0-20.5		WC	13.2-13.5	83.0-85.0	3600	1.5	1.0-2.5
K05VF	4.5-5.0	0.6	WC	14.6-15.0	92.5-93.0	1500	0.6	0.6-1.0
K10VF	5.5-6.2	0.6	WC	14.5-14.7	91.5-92.5	1550	0.6	0.6-1.0
K20VF	7.5-8.0	0.6	WC	14.5-14.7	90.5-91.5	1800	0.6	0.6-1.0

WC—Ni

Grade	Composition (%)			Density (g/cm³)	Hardness (HRA)	Transverse Rupture Strength (2N/mm²)	Average Grain Size (μm)	Grain Size (μm)
Ni	Other	Balance
YN6	5.5-6.2	0.2	WC	14.6-15.0	89.5-90.5	1800	1.2	0.8-2.0
YN7	6.8-7.2	0.2	WC	14.4-14.8	89.0-90.0	1900	1.2	0.8-1.6
YN8	7.8-8.3	0.2	WC	14.5-14.8	89.0-90.0	2200	1.2	0.8-2.0
YN12	11.5-12.2	0.2	WC	14.0-14.4	87.5-88.5	2600	1.2	0.8-2.0
YN15	14.5-15.2	0.2	WC	13.7-14.2	86.5-88.0	2800	1.0	0.6-1.5

WC+TIC Co+Ni

Grade	Composition (%)			Density (g/cm³)	Hardness (HRA)	Transverse Rupture Strength (2N/mm²)	Average Grain Size (μm)	Grain Size (μm)
Co+Ni	Other	Balance (WC+TIC)
YN6/EA	6.0	2	WC+TIC	14.0-14.5	89.0-90.0	1750	1.2	0.8-2.0
YN8/EA	8.0	2	WC+TIC	13.8-14.4	88.5-89.5	1800	1.2	0.8-2.0
YN11/EA	11.0	2	WC+TIC	13.6-14.0	87.0-88.0	2300	1.2	0.8-2.0
YN6/EB	6.0-6.5	5	WC+TIC	13.3-13.6	89.0-90.0	1650	1.2	0.8-2.0
YN8/EB	8.0-8.5	5	WC+TIC	13.2-13.5	88.5-89.5	1700	1.2	0.8-2.0
YG11/EB	11.0-12.0	5	WC+TIC	12.0-13.2	87.0-88.0	2200	1.2	0.8-2.0
YN6/EC	6.0	8-10	WC+TIC	10.0-12.0	89.0-90.0	1550	1.2	0.8-2.0
YN8/EC	8.0-9.0	8-10	WC+TIC	10.0-12.0	88.5-89.5	1600	1.2	0.8-2.0
YN11/EC	11.5-12.5	8-10	WC+TIC	9.5-11.5	87.0-88.0	2100	1.2	0.8-2.0

TIC +WC—Ni

Grade	Composition (%)			Density (g/cm³)	Hardness (HRA)	Transverse Rupture Strength (2N/mm²)	Average Grain Size (μm)	Grain Size (μm)
Ni+Co	Dopant	Balance (TiC+WC)
TN05	8.0-10.0	4-5	TiC+WC	6.5-7.5	92.5-93.5	1150	1.0	0.8-2.0
TN10	19.5-20.5	4-5	TiC+WC	6.5-7.5	92.0-93.0	1350	1.0	0.8-2.0
TN20	12.0-13.0	4-5	TiC+WC	6.5-7.5	91.5-92.5	1600	1.0	0.8-2.0
TR14	14.0-14.5	2-3	TiC+WC	9.0-9.5	89.0-90.5	2600	1.2	0.8-2.0
WZ15	15.0	4-5	TiC+WC	9.0-9.5	88.0-89.5	2600	1.0	0.8-2.0
