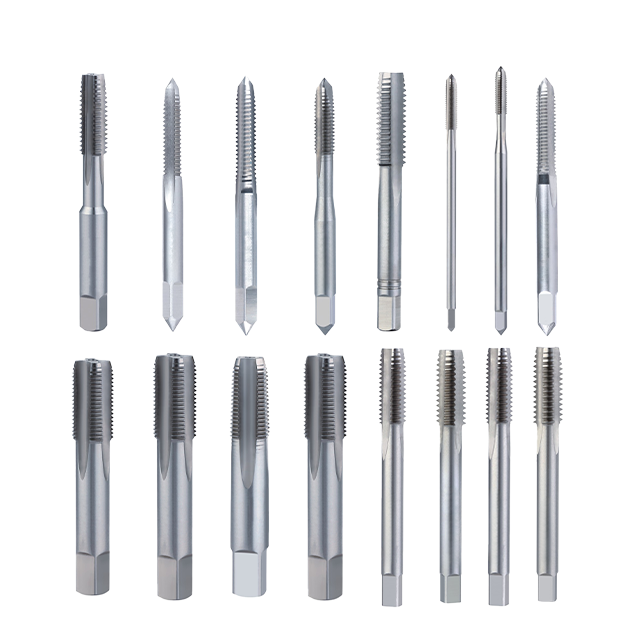

Straight Flute Tap

Description

We offer standard tungsten carbide Tap specifications and accept custom orders based on your drawings.

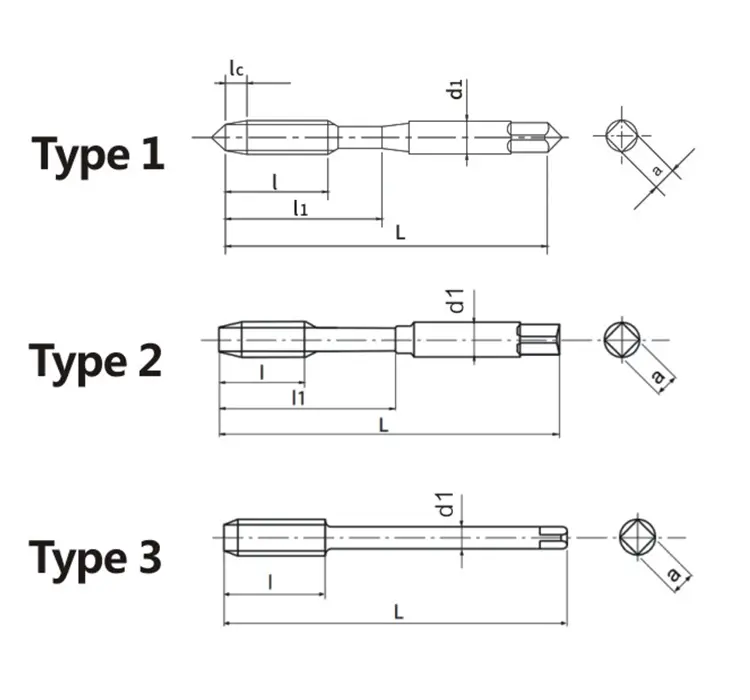

Product Number	Specification	Pitch P	Thread Tolerance T	Total Length L	Thread Length l	Cutting Cone Length lc - Initial Cone	Cutting Cone Length lc - Middle Cone	Cutting Cone Length lc - Bottom Cone	Shank Diameter d1	Square Thickness a	Pre-drilled Hole Diameter d0
SZ816301	M3	0.5	H2	46	18	6P	4P	2P	4	3.2	2.5
SZ816302	M4	0.7	H2	52	20	6P	4P	2P	5	4	3.3
SZ816303	M5	0.8	H2	60	22	6P	4P	2P	5.5	4.5	4.2
SZ816304	M6	1	H2	62	24	6P	4P	2P	6	4.5	5
SZ816305	M8	1.25	H2	70	30	6P	4P	2P	6.2	5	6.8
SZ816306	M10	1.5	H2	75	32	6P	4P	2P	7	5.5	8.5
SZ816307	M12	1.75	H2	82	38	6P	4P	2P	8.5	6.5	10.3
