Factory Custom OEM/ODM Cemented Tungsten Carbide Ball Buttons – PDC Drill Bits (Petroleum Drilling, YG8/YG11)

Product Details:

  • Place of Origin: Sichuan, China
  • Brand Name: KEDEL
  • Certification: ISO9001:2015,SGS
  • Model Number: SQ

Payment & Shipping Terms:

  • Minimum Order Quantity: 20 Piece/Pieces
  • Price: $0.60 – $19.00 / Piece / Piece
  • Packaging Details: foam + small box + carton for carbide Sleeve Bushing
  • Payment Terms: L/C,D.P,T/T,Western Union,MoneyGram
  • Supply Ability: 2000 pcs per months



Description

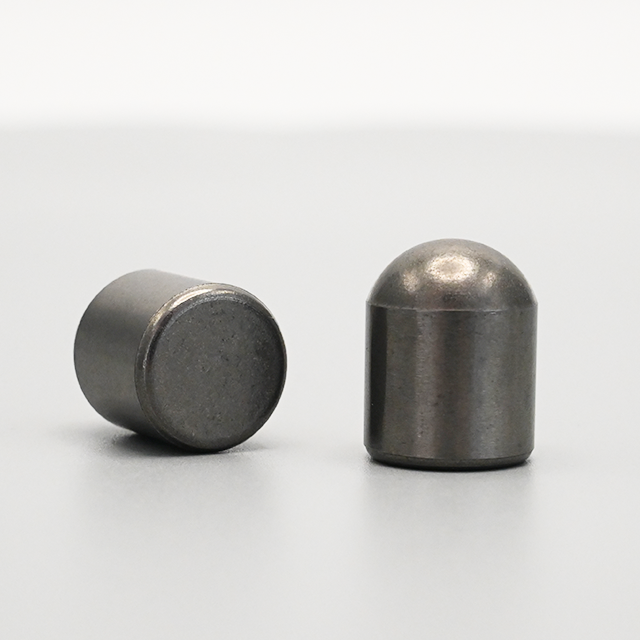

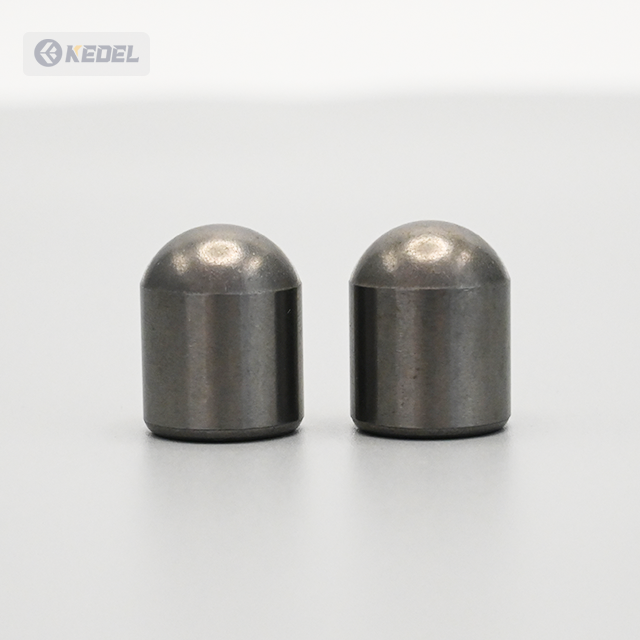

Tungsten carbide alloy button for oilfield drilling

We offer standard tungsten carbide button specifications and accept custom orders based on your drawings.

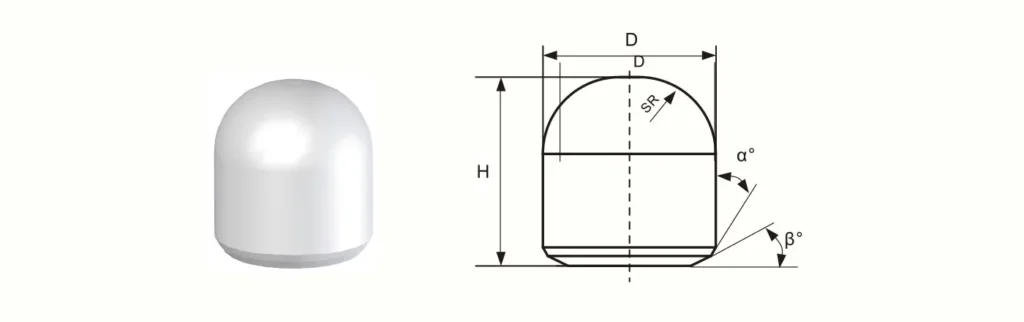

SQbottons

Product Specifications

TypeDimension (mm)
DHSRα°β°
SQ0802096-E12E058.029.64.1015°15°
SQ0951093-E08E059.519.37.1815°15°
SQ1005150-H19X0810.0515.05.6020°26°
SQ1110170-H08H1611.1017.06.1022°24°
SQ1206193-H08H1612.0619.36.1022°24°
SQ1300200-H10H1213.0020.06.5725°20°
SQ1400180-X16H1814.0018.07.0823.5°
SQ1618210-H10F2316.1821.08.2520°30°
SQ1630210-H20E0816.3021.09.0025°16°
SQ1700260-X12H2817.0026.08.7020°30°
SQ1810280-H22E0818.1028.09.2525°16°
SQ1825280-H14H1418.2528.09.0020°20°
SQ1900250-H19H1019.0025.09.9025°20°

Product Specifications

Diameter (D)Height (H)
Nominal sizeToleranceNominal sizeTolerance
≤10±0.10≤11±0.10
>10±0.1511 - 18±0.15
18 - 25±0.15
>25±0.20

Grade

GradeDensity g/cm³Hardness HRATRS N/mm²Grain SizeISO CodeApplications
JK03G15.0090.32800MediumK20With excellent impact & wear resistance and good performance. Suitable for production of cemented carbide buttons of various kinds of DTH bits (high air pressure, middle air pressure and low air pressure) and threaded drilling bits. The preferred grade for high air pressure DTH bits.
JK03M15.0090.02850MediumK20
JK06G15.0090.22500MediumK20With good impact & wear resistance. Suitable for cemented carbide buttons of various kinds of DTH bits (middle air pressure and low air pressure) and threaded drilling bits.
JK07G14.9089.22600CoarseK20With good impact & wear resistance. Suitable for cemented carbide buttons of various kinds of DTH bits (middle air pressure and low air pressure) and threaded drilling bits.
JK0814.7088.52400CoarseK30Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for drilling medium hard & hard rock formations, also used for making cemented carbide inserts of other drill bits.
JK0914.5088.02600CoarseK30Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for drilling medium hard & hard rock formations, also used for making cemented carbide inserts of other drill bits.
JK2514.4587.02700CoarseK40Suitable for carbide inserts of heavy-duty rock drilling tools for drilling hard & super hard rock formations, also used for making tricone bits and other button bits.

Packaging
