Cemented Tungsten Carbide Cylindrical/Cone/Spherical Buttons for Oil and Gas Industry (YG8/YG9/YG11/YG13)

Product Details:

  • Place of Origin: Sichuan, China
  • Brand Name: KEDEL
  • Certification: ISO9001:2015,SGS
  • Model Number: SZ

Payment & Shipping Terms:

  • Minimum Order Quantity: 20 Piece/Pieces
  • Price: $0.60 – $19.00 / Piece / Piece
  • Packaging Details: foam + small box + carton for carbide Sleeve Bushing
  • Payment Terms: L/C,D.P,T/T,Western Union,MoneyGram
  • Supply Ability: 2000 pcs per months



Description

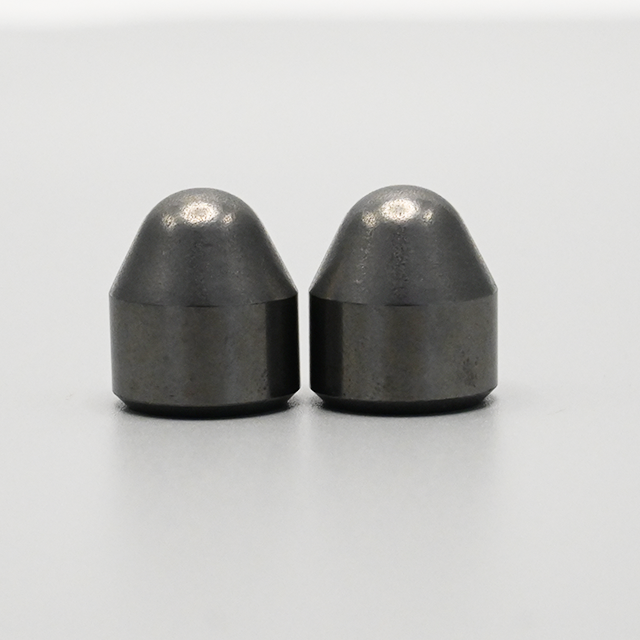

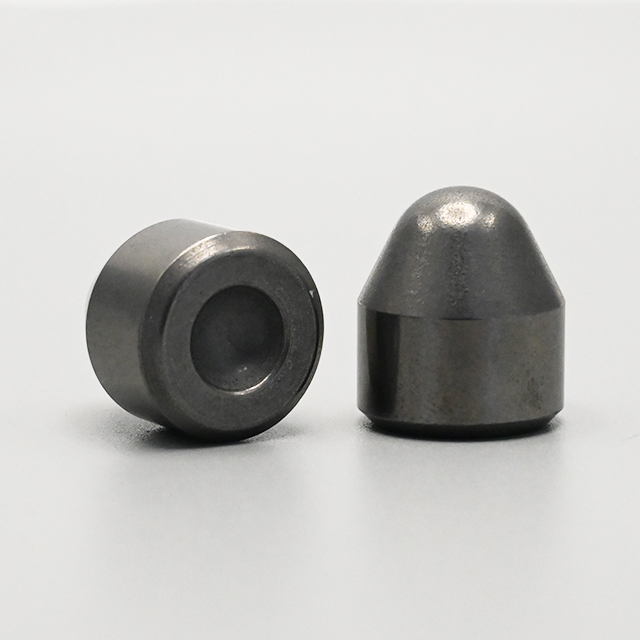

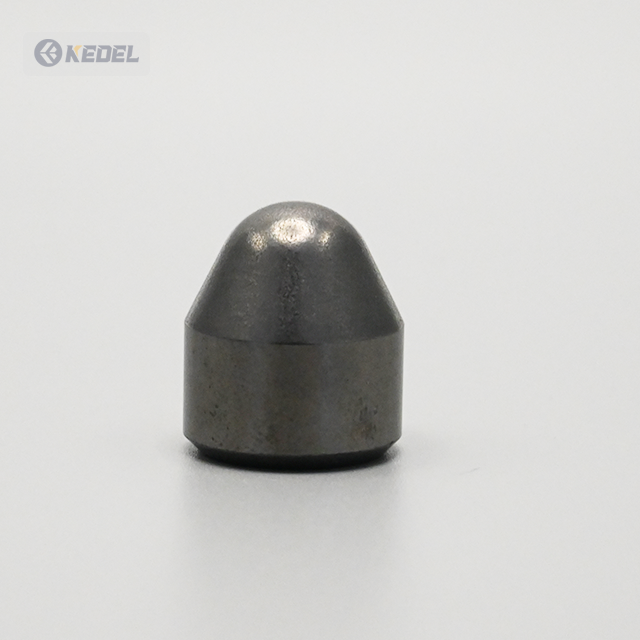

Tungsten carbide alloy button for oilfield drilling

We offer standard tungsten carbide button specifications and accept custom orders based on your drawings.

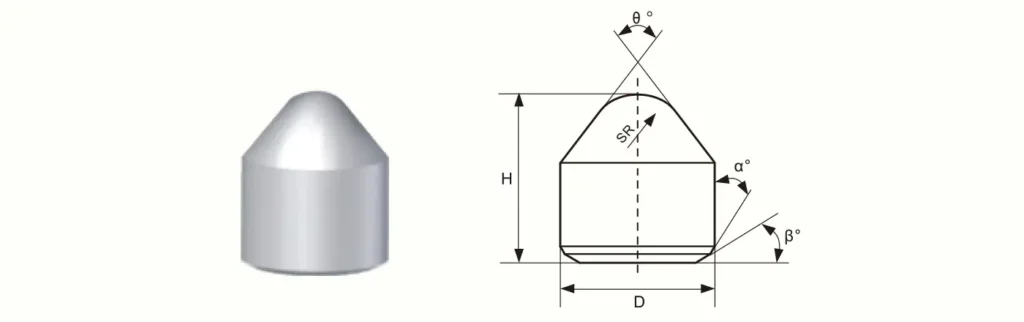

Product Specifications

TypeDimension (mm)
DHeβ°Aα°
SPD0675050-H166.755.01.6250.3845
SPD0817066-H208.176.62.0200.3845
SPD0977063-E159.776.31.5151.2045
SP0643059-E14E036.435.91.7150.6045
SP0812057-E10Q8.125.71.0150.5045
SP1000080-E1010.008.01.0180.5045
SP1220097-X1012.209.71.0180.5045
SP1420100-X10-JG14.2010.01.0180.5045
SP1520100-X1015.2010.01.0150.5045

Standard of tolerances of D and H For buttons

Diameter (D)Height (H)
Nominal sizeToleranceNominal sizeTolerance
≤10±0.10≤11±0.10
>10±0.1511 - 18±0.15
18 - 25±0.15
>25±0.20

Grade

GradeDensity g/cm³Hardness HRATRS N/mm²Grain SizeISO CodeApplications
JK03G15.0090.32800MediumK20With excellent impact & wear resistance and good performance. Suitable for cemented carbide buttons of various kinds of DTH bits (high air pressure, middle air pressure and low air pressure) and threaded drilling bits. The preferred grade for high air pressure DTH bits.
JK03M15.0090.02850MediumK20
JK06G15.0090.22500MediumK20With good impact & wear resistance. Suitable for cemented carbide buttons of various kinds of DTH bits (middle air pressure and low air pressure) and threaded drilling bits.
JK07G14.9089.22600CoarseK20
JK0814.7088.52400CoarseK30Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for drilling medium hard & hard rock formations, also used for making cemented carbide inserts of other drill bits.
JK0914.5088.02600CoarseK30
JK2514.4587.02700CoarseK40Suitable for carbide inserts of heavy-duty rock drilling tools for drilling hard & super hard rock formations, also used for making tricone bits and other button bits.
