Industrial Applications and Performance Analysis of Tungsten Carbide Circular Knives
Tungsten carbide circular knives, characterized by high hardness (HRA 89-93), long wear life (5-10 times that of high-speed steel tools), and heat resistance (≤600℃), serve as core tools in industrial cutting. The following analysis integrates tables, lists, and paragraphs to detail their application scenarios, product performance, material systems, and technological trends:
I. Cross-Industry Application Scenarios and Core Advantages
Tungsten carbide circular knives are widely used in five major industries, with their adaptability achieved through precise matching of material properties and structural design:
Typical Industry Applications (List)
- Metal Processing: Cutting stainless steel plates and aluminum alloy pipes requires high-load resistance and anti-adhesion. Tungsten-titanium-cobalt alloys (YT15) with TiN coatings are used, featuring a strength ≥1400MPa.
- Paper Processing: Continuous cutting of corrugated cardboard requires sharp edges (arc radius 0.01-0.03mm), with cutting speeds of 100-300m/min and incision errors ≤±0.5mm.
- Lithium Battery Manufacturing: Electrode sheet cutting requires burr control ≤0.05mm. Nano-DLC coated tools with surface roughness Ra≤0.2μm offer a service life ≥100,000 cuts.

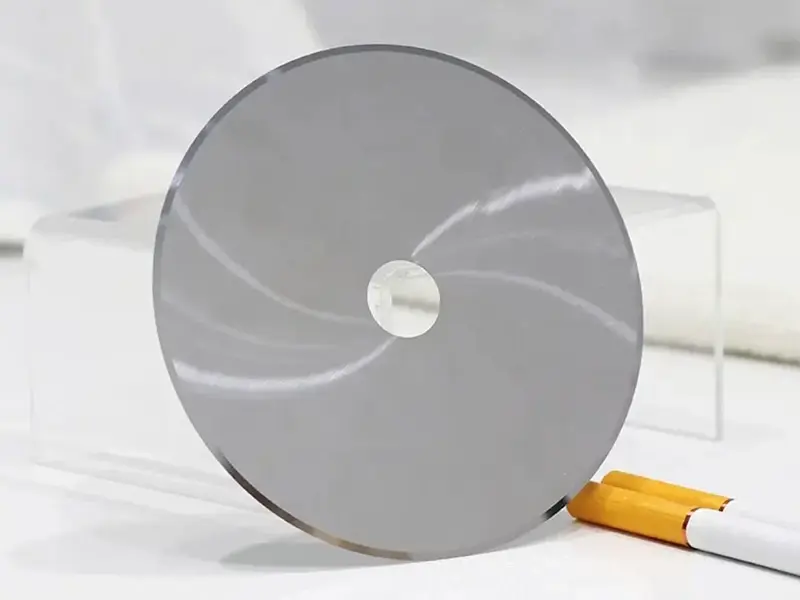

- Tobacco Processing: Tobacco leaf cutting requires an accuracy of ±0.1mm. Tools undergo mirror polishing (Rz≤0.5μm) and anti-corrosion treatment to adapt to high-frequency cutting in nicotine environments.
- Rubber & Plastic Processing: Shaped cutting of engineering plastics relies on high-toughness alloys (12%-15% cobalt content) to withstand impact loads during complex contour machining.
Comparison Table: Industry Cutting Requirements vs. Tool Solutions
| Industry | Core Material | Key Index | Tool Technology Highlights |
|---|---|---|---|
| Metal Processing | Stainless Steel/Aluminum | Incision Accuracy ±0.1mm | Coating friction reduction, dynamic balance G2.5 |
| Lithium Battery | Copper/Aluminum Foil | Burr ≤0.03mm | Diamond-like carbon (DLC) coating, edge roughness ≤0.1μm |
| Tobacco | Cured Tobacco Leaves | Cutting Speed 5 cuts/s | Anti-corrosion passivation, vibration ≤0.05mm |
II. Core Product Performance and Cases of KEDel Tools

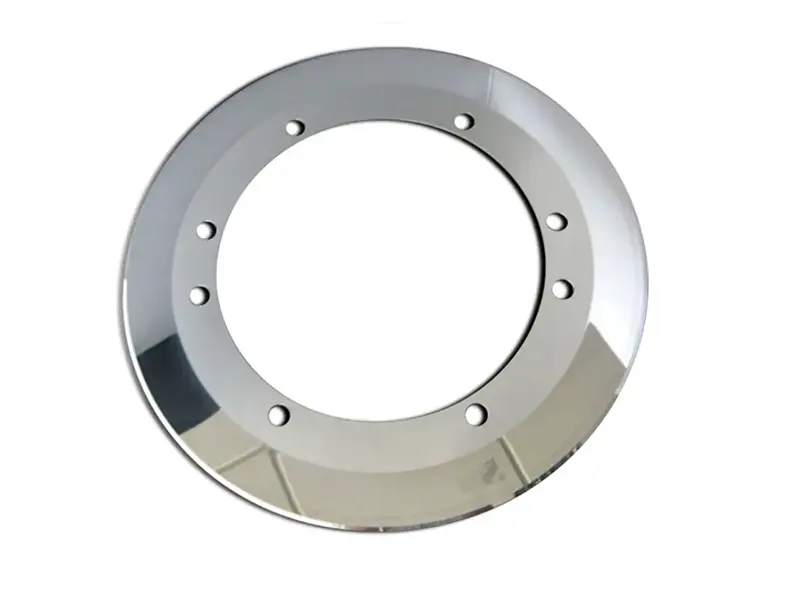

1. Paper Cutting Specialized Circular Knife (KD-YD01)
Performance Data Table
| Index | Measured Value | Comparison with Traditional Tools | Customer Benefits |
|---|---|---|---|
| Hardness (HRA) | 91 | +28% | Service life extended by 3x, annual cost savings of ¥50,000 |
| Cutting Speed | 150m/min | +50% | Order cycle shortened by 33% |
| Incision Error | ±0.3mm | +40% accuracy | Defect rate reduced from 5% to 1.2% |
Application Case: A carton factory cutting 5,000 corrugated boards daily uses the knife for 14 consecutive days with only simple cleaning, reducing maintenance frequency by 50% compared to original tools, significantly improving productivity.
2. Lithium Battery Cutting Specialized Circular Knife (KD-LD03)
Technical Highlights (List)
- Coating Process: Diamond-like carbon (DLC) coating with surface hardness HV2500+, 60% improved anti-adhesion.
- Edge Design: Laser micro-polishing to Ra≤0.1μm, 30% reduced cutting resistance and 18% lower energy consumption.
- Service Life: Wear <0.05mm after 150,000 consecutive cuts, reducing monthly tool changes from 5 to 2.
Customer Feedback: A battery factory using this tool saw an increase in electrode sheet yield from 92% to 98%, reducing annual waste costs by over ¥200,000.
III. Material Systems and Structural Analysis
1. Classification of Cemented Carbides by Cobalt Content
| Type | Cobalt Content | Hardness (HRA) | Typical Applications |
|---|---|---|---|
| Tungsten-Cobalt (YG) | 6%-15% | 89-91 | Cast iron roughing, rubber cutting |
| Tungsten-Titanium-Cobalt (YT) | 3%-5% | 91-93 | Steel finishing, high-precision cutting |
| Tungsten-Tantalum-Cobalt (YW) | 8%-10% | 90-92 | Heat-resistant alloys, stainless steel complex contours |
2. Tool Shapes Matching Processing Scenarios
- Ultra-Thin Circular Knives (Φ50-Φ200mm, thickness 0.3-1.0mm): Used for lithium battery electrode sheet slitting, requiring high-precision slitting machines and extreme incision flatness.
- Thick Plate Circular Knives (Φ300-Φ600mm, thickness 5-20mm): Adapted for metal plate shears, used in heavy steel cutting, requiring enhanced blade strength (bending strength ≥1800MPa).
- Shank Circular Knives (Φ20-Φ100mm with mounting shanks): Used in milling machines or machining centers for 3D shaping of wood/plastics, requiring optimized dynamic balance.
IV. Technical Trends and Innovation Directions
Three Cutting-Edge Technologies (Paragraph Analysis)
- Nano-Composite Coating Technology: Multi-layer coatings (e.g., TiAlN/AlCrN) increase surface hardness to HV3000+ and oxidation resistance up to 1100℃, suitable for cutting high-hardness materials like aerospace titanium alloys, extending tool life by 40% compared to traditional coatings.
- Gradient Structure Design: The tool surface uses high-hardness tungsten carbide (WC), while the core employs high-toughness cobalt (Co)-based alloys, improving impact resistance by 30% and reducing edge chipping risks in intermittent cutting (e.g., gear machining).
- Intelligent Tool Systems: Built-in micro wear sensors transmit data via Bluetooth to industrial control systems, automatically alerting when edge wear reaches a preset threshold (e.g., 0.02mm), reducing downtime losses from tool failure. This has been widely applied in automated packaging lines.
Technology Comparison List
| Trend | Traditional Technology | Innovative Technology | Performance Improvement |
|---|---|---|---|
| Coating Process | Single-layer TiN | Nano-multi-layer composite | Life +40%, Hardness +30% |
| Structural Design | Homogeneous alloy | Gradient composite | Impact resistance +30% |
| Condition Monitoring | Manual inspection | Intelligent sensor | Downtime loss -50% |
Conclusion
Tungsten carbide circular knives exemplify the fusion of material science and industrial innovation, driving efficiency across metalworking, energy production, and consumer goods manufacturing. Their versatility—rooted in customizable compositions (e.g., cobalt content for toughness, titanium for wear resistance) and advanced coatings (DLC, TiAlN)—makes them indispensable for precision 切割 (cutting) in high-stakes industries like lithium battery production, where a single burr could compromise an entire cell.
As manufacturing evolves toward automation and sustainability, the demand for smarter, longer-lasting tools will only grow. Innovations such as gradient-structured alloys and IoT-enabled wear monitoring are already reshaping how these knives are designed and deployed, promising further reductions in downtime and waste. For industries reliant on precise, high-volume cutting, tungsten carbide circular knives remain not just tools but strategic assets—essential for maintaining quality, scaling production, and pushing the boundaries of what’s technically achievable.
Whether optimizing a cigarette factory’s throughput, ensuring the precision of electric vehicle batteries, or enabling the rapid prototyping of complex plastic components, these knives prove that even the smallest cutting edge can wield enormous influence in shaping modern manufacturing. As research into nanomaterials and additive manufacturing progresses, the next generation of tungsten carbide tools will likely redefine industry standards once again, solidifying their role as the backbone of industrial cutting technology.
