If you’re an engineer sourcing tungsten carbide seal rings or a procurement specialist comparing wear-resistant parts for equipment, you’ve almost certainly asked: “Is tungsten carbide actually expensive?” As someone who’s worked in the tungsten carbide industry for years, I can’t give a simple “yes” or “no”—it’s pricier than regular steel parts, but cheaper than many specialty ceramics or alloys. While the upfront cost might make you pause, its long lifespan and low maintenance needs often make it more cost-effective in the long run. In this post, I’ll break it down in plain terms: what drives tungsten carbide’s cost, how it stacks up against other materials, why its “expense” is often justified, and how to avoid overpaying for it. No jargon—just practical insights for industrial use cases.
First: Tungsten Carbide Is Pricier Than Some Materials, Cheaper Than Others
To answer “is it expensive?” we need context. Among common industrial materials for wear and corrosion resistance, tungsten carbide sits in the mid-to-upper range—not the cheapest, but far from the most expensive.
| Material Type | Cost Level (Relative) | Common Industrial Uses | Key Difference vs. Tungsten Carbide |
|---|---|---|---|
| Mild Steel/Cast Iron | ★☆☆☆☆ (Cheapest) | Basic machine frames, non-wear parts | Cheap but wears quickly (1–3 months life) |
| Stainless Steel (304/316) | ★★☆☆☆ | Corrosion-resistant pipes, light-wear parts | Corrosion-resistant but soft (wears faster than WC) |
| Tungsten Carbide (Cobalt-Bound) | ★★★★☆ | Seal rings, drill bits, wear liners | Hard & durable (5–10x longer life than steel) |
| Alumina Ceramic | ★★★★☆ | High-frequency insulators, low-impact wear parts | Hard but brittle (prone to cracking from vibration) |
| Silicon Carbide Ceramic | ★★★★★ (More Expensive) | Extreme high-temperature, heavy-corrosion parts | Better heat resistance than WC but more brittle & costly |
Here’s a real-world example: A chemical pump seal ring made of stainless steel costs around $8, lasts 2 months. A tungsten carbide version costs $48, lasts 12 months. Upfront, tungsten carbide is 6x pricier—but the monthly cost? $4 for stainless steel vs. $4 for tungsten carbide. Factor in downtime (each seal ring change shuts the pump down for 2 hours, costing ~$100 in labor/ lost production), and tungsten carbide saves you money.
3 Key Reasons Tungsten Carbide Costs More (They’re All Hard Costs)
Tungsten carbide isn’t expensive because of “brand markup”—its cost comes from unavoidable expenses in raw materials, manufacturing, and performance.
1. Raw Materials: Tungsten Ore Is Scarce & Hard to Refine
The core ingredient in tungsten carbide is tungsten powder—and tungsten itself is a rare strategic resource. The process to turn ore into usable powder is complex and energy-intensive:

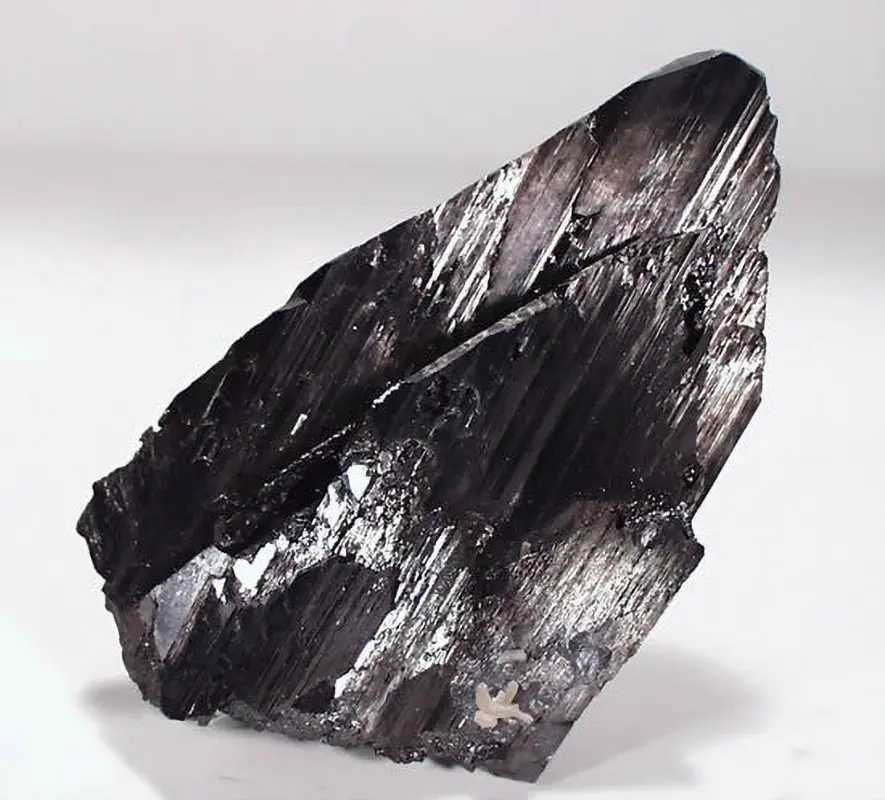

- First, miners extract tungsten ore (wolframite or scheelite), then crush and process it to get “tungsten concentrate.”
- The concentrate is chemically refined into ammonium paratungstate (APT), then reduced to pure tungsten powder. This uses large amounts of energy and chemicals.
- High-purity tungsten powder (99.9% pure, standard for industrial use) costs tens of times more per ton than mild steel. This alone makes tungsten carbide more expensive than basic metals.
2. Manufacturing: It’s Not “Melt & Cast”—It’s Precision Work
Tungsten carbide isn’t made like steel (melted and poured into molds). It uses powder metallurgy—a multi-step process that’s time-consuming and requires specialized equipment:
- Powder mixing: Tungsten, carbon, and binder powders (usually cobalt) are mixed to exact ratios. Even small inconsistencies ruin performance, so mixing takes 6–12 hours.

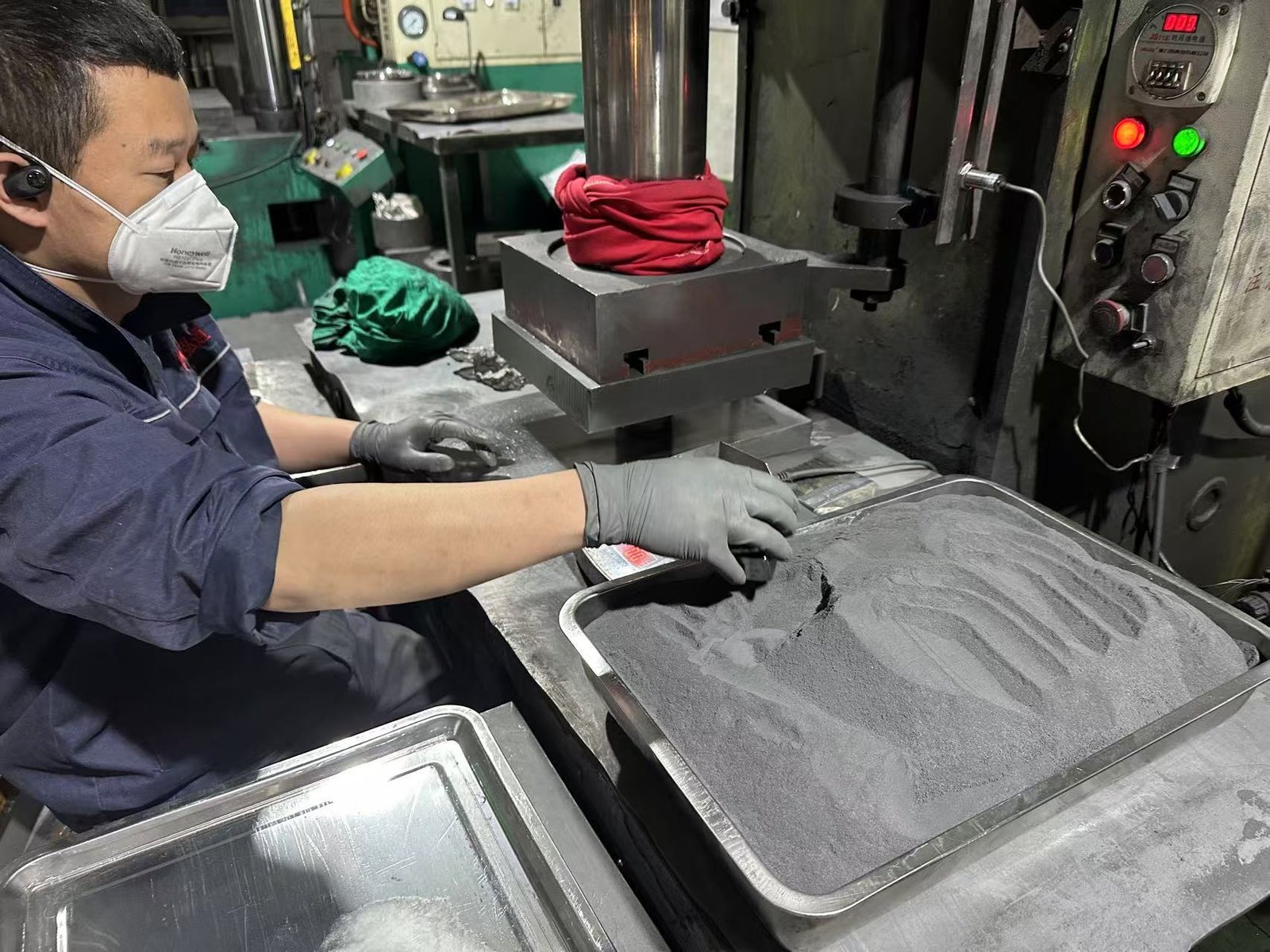

- Pressing: The powder is pressed into shapes (like seal rings) using hydraulic presses that apply 20–30 tons of pressure per square centimeter. High-precision steel molds cost tens of thousands of dollars.
- Sintering: The pressed “green compacts” are heated in furnaces to 1,400–1,600°C (hotter than lava) for 10–20 hours. Inert gas is used to prevent oxidation, adding to energy costs.
- Finishing: Sintered parts are ground to mirror-like precision (e.g., 0.001mm tolerance for seal rings) using diamond tools—since only diamond is hard enough to cut tungsten carbide. Diamond tools are expensive, and finishing takes 1–2 hours per part.
Each step adds cost: A single sintering furnace costs hundreds of thousands of dollars, and its electricity bill alone is significant.
3. Performance: “Expensive” = Less Downtime & Fewer Replacements
The biggest “hidden value” of tungsten carbide is that its upfront cost saves money later. Industrial equipment loses far more money to downtime than to expensive parts:
- A mining crusher’s wear liners made of manganese steel last 3 months, requiring 1 day of downtime per change (costing ~$10,000 in lost production). Tungsten carbide liners last 18 months, cutting downtime by 80%.
- A chemical plant’s ceramic seal rings crack every 6 months, causing fluid leaks that waste raw materials and require cleanup. Tungsten carbide seal rings last 12 months with no leaks, saving on material waste and labor.
For most industrial users, avoiding downtime is worth the higher upfront cost of tungsten carbide.
3 Tips to Avoid Overpaying for Tungsten Carbide
Not all tungsten carbide is “worth the price.” Use these tips to get the best value:
1. Don’t Overpay for “Higher Purity” Than You Need
99.9% pure tungsten powder is standard for 90% of industrial uses (seal rings, drill bits, liners). 99.99% pure powder costs 20% more but only benefits niche applications (e.g., precision electronics or medical devices). Stick to 99.9% unless your工况 specifically requires more.
2. Choose the Right Binder for Your Workload (Not Just “More Cobalt”)
Binder type (cobalt vs. nickel) and content affect cost: Cobalt is more expensive than nickel, and higher cobalt content = higher price. But “more cobalt” isn’t always better:
- High-vibration equipment (e.g., crushers): Use 10–15% cobalt for toughness (avoids cracking).
- Corrosive environments (e.g., chemical pumps): Use nickel binders (cheaper than cobalt, better corrosion resistance).
- Light-wear parts (e.g., basic valve seals): Use 5–8% cobalt (lower cost, still durable enough).
One client wasted money by using 15% cobalt seal rings for a low-pressure water valve—5% cobalt would have worked just as well, saving 30% on cost.
3. Buy in Bulk & Partner Long-Term for Better Prices
Tungsten carbide suppliers offer volume discounts: Ordering 1,000 seal rings instead of 100 can cut the per-unit cost by 15–20% (since mixing and mold setup costs are spread out). Long-term contracts (e.g., annual supply agreements) often include extra perks: free technical support, faster lead times, or even custom formulations at no extra cost.
Myth Busting: “More Expensive Tungsten Carbide = Better Quality”
A common mistake is assuming pricier tungsten carbide is “better.” The truth is, fit for purpose matters more than cost:
- A “high-hardness, low-cobalt” tungsten carbide part (expensive) will crack in a high-vibration crusher—you’re better off with a “medium-hardness, medium-cobalt” part (cheaper and more durable).
- A “high-temperature resistant” tungsten carbide part (expensive) is a waste for a room-temperature water pump—standard tungsten carbide works just fine.
The best tungsten carbide is the one that matches your工况 (pressure, temperature, corrosion, vibration)—not the most expensive one.
Final Takeaway: Tungsten Carbide Is “Expensive” but Worth It for Long-Term Value
If you only look at upfront cost, tungsten carbide is expensive. But when you factor in its 5–10x longer lifespan, lower maintenance, and reduced downtime, it’s often the most cost-effective choice for industrial wear parts. Its cost comes from rare raw materials, precision manufacturing, and unbeatable performance—not markup.
If you’re still unsure whether tungsten carbide fits your budget, or if you want to check if you’re overpaying for your current parts, reach out. We can help you calculate a “total cost of ownership” (including downtime and replacements) and recommend the right tungsten carbide grade for your needs—no jargon, just clear numbers.
