Having worked in the tungsten carbide products industry for years, one of the most common questions I get is: “Besides tungsten carbide, are there other alloy drill bits that work better on concrete?” Let’s clarify this clearly—here’s the bottom line: Currently, no conventional alloy drill bits can truly replace tungsten carbide bits in terms of cost-effectiveness and suitability. However, there are indeed “affordable alternative options for temporary use” (ideal for small-scale projects and low-strength concrete) and “enhanced versions” that outperform regular tungsten carbide bits (much more effective for high-strength concrete). Additionally, you must first understand “cement grades” before choosing a drill bit, as concrete hardness varies drastically across different grades. If the drill bit doesn’t match the concrete grade, even a tungsten carbide bit may drill slowly and wear out quickly. Below, I’ll break this down step by step.
First, the Answer: Why No Other Alloy Drill Bits Are More Suitable for Concrete Than Tungsten Carbide

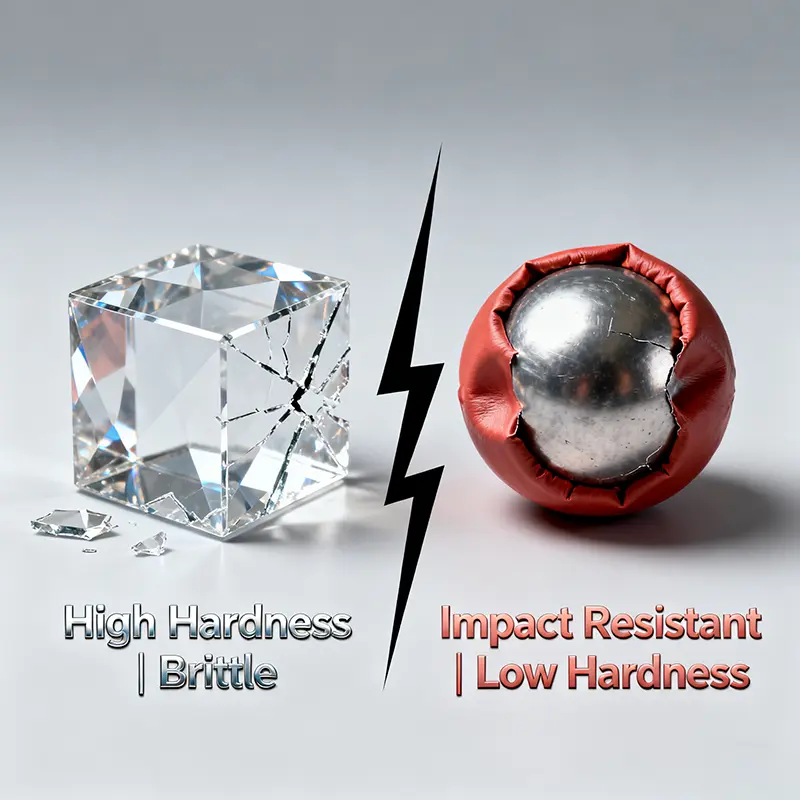

To understand this, you first need to recognize the physical properties of concrete: It consists of cement paste, aggregate (such as granite chips and quartz sand), and in some cases, steel reinforcement. Drilling concrete requires the bit to both “grind through hard aggregate” and “withstand impact without chipping.” Other common alloy drill bits fail to balance these two core requirements—either lacking hardness or impact resistance:
- High-Speed Steel (HSS) Alloys: With a hardness of only HRC 58–65, they wear out quickly when in contact with concrete aggregate. Typically, they need sharpening after just 1–2 holes and cannot sustain continuous work.
- Ceramic Alloys: While they have high hardness, they are extremely brittle. They easily chip when encountering coarse aggregate in concrete, making them nearly useless for regular concrete drilling.
- Cubic Boron Nitride (CBN) Alloys: Their hardness is close to that of diamonds, but their production cost is extremely high. Drilling 1 meter of concrete with CBN bits costs approximately 3 times more than with tungsten carbide bits, making them economically unfeasible for bulk or daily use.
In contrast, tungsten carbide bits strike the perfect balance: Their tip hardness reaches HRA 88–92, easily grinding through aggregate in concrete with a grade below C40. Meanwhile, the bit body uses a composite structure of steel and cobalt—cobalt acts as a binder to improve overall toughness, allowing the bit to withstand drilling impacts without chipping. For over 90% of concrete drilling tasks, tungsten carbide bits are the optimal choice, balancing hardness, toughness, and affordability. Other alloys either lack durability or are too costly.
First, Understand Cement Grades: The Foundation of Choosing the Right Drill Bit to Avoid Blind Drilling
Many people only focus on whether a drill bit is “suitable for concrete” when purchasing, but overlook the significant differences in concrete hardness—which directly determines the choice of drill bit. Concrete hardness is labeled by “cement grades”: The higher the grade number, the greater the pressure (measured in MPa) the concrete can withstand, and the harder it is. Below are the three most common cement grades in daily work, including their application scenarios, physical characteristics, and drilling difficulty, to help you judge quickly:
| Cement Grade | Common Application Scenarios | Physical Characteristics (Objective Description) | Drilling Difficulty |
|---|---|---|---|
| C15–C20 (Low-Strength) | Walls of old residential buildings, garden paths, concrete flower pots (non-load-bearing structures) | Surfaces can be easily scratched with a screwdriver; prone to chipping under force | Low resistance, similar to drilling hard soil |
| C25–C40 (Medium-Strength) | Walls of new residential buildings, community driveways, sidewalks, floors of ordinary commercial buildings | Hard surfaces; cannot be scratched with a screwdriver; emits a clear sound when tapped | Obvious friction from aggregate; requires moderate pressure |
| C50–C80 (High-Strength) | Foundations of large shopping malls, bridge structures, factory workshop floors, load-bearing walls of high-rise buildings | Dense, smooth surfaces with no obvious pores; hardness similar to natural rock | Significant vibration during drilling; aggregate easily causes bit overheating |
Last year, a client told me: “I used a tungsten carbide bit to drill a wall, and it took 10 minutes to get through one hole—Is there a problem with the bit quality?” Further communication revealed he was drilling the column of a new shopping mall—such structures typically use C60 high-strength concrete, so a regular tungsten carbide bit would naturally be inefficient. Later, I recommended an enhanced tungsten carbide bit, and the drilling time was reduced to less than 5 minutes. This shows how important it is to understand cement grades when choosing a drill bit.
“Lower-Tier Alternatives” to Tungsten Carbide: Limited Applications, Recommended Only for Emergencies
If your workload is minimal (e.g., drilling 2–3 small holes) and the concrete grade is below C20, and you don’t want to purchase a dedicated tungsten carbide bit, the following three “alternatives” can be used temporarily. However, note their performance limitations—they are not recommended for regular or high-strength work:
| Alternative Type | Suitable Scenarios (Strictly Matched) | Suitable Cement Grade | Performance Gap Compared to Tungsten Carbide Bits | Usage Advice |
|---|---|---|---|---|
| High-Speed Steel with Cobalt (HSS-Co) | Drilling small holes (≤6mm), such as installing wall hooks or curtain rod brackets | C15–C20 | Drilling efficiency is about 1/3 that of tungsten carbide; requires sharpening after 1–2 holes; prone to chipping when encountering aggregate | Only for one-time emergency tasks (e.g., temporary drilling in rented houses); avoid repeated use |
| Regular Alloy Cast Iron Bits | Only suitable for soft mortar layers (not concrete) or red brick walls | ≤C15 | Cannot penetrate solid concrete; prone to slipping; rod easily breaks under force | Not recommended for concrete drilling. If mistakenly used on concrete above C20, the bit will likely be ruined |
| Low-Cost “Imitation Tungsten Carbide” Bits | Low-priced “tungsten carbide-tipped” bits sold in hardware stores (actually low-quality alloys) | ≤C15以下 | Poor bonding between tip and rod (prone to falling off); rough hole walls with debris after drilling | It’s better to add a small budget to buy genuine tungsten carbide bits—one genuine bit lasts as long as 3–5 low-cost imitations |
I often tell clients: “These alternatives are more like ‘emergency tools’ than ‘regular solutions.’” If your work scenario does not meet the three conditions of “small holes, low strength, and one-time use,” it’s better to choose a tungsten carbide bit directly to avoid rework or additional costs due to improper bit matching.
“Enhanced Versions” of Tungsten Carbide: Ideal for High-Strength Concrete, Boosting Efficiency and Durability
Regular tungsten carbide bits can meet the needs of drilling concrete below C40. However, for high-strength concrete above C50 or bulk drilling (e.g., a decoration team drilling over 20 holes per day), it’s recommended to choose “enhanced tungsten carbide bits”—these products use tungsten carbide as the core and improve performance through special designs, as detailed below:
1. Diamond-Tungsten Carbide Composite Bits
Fine diamond particles (harder than tungsten carbide) are mixed into the tungsten carbide tip, enabling it to effectively grind hard aggregates (such as granite and quartz) in concrete up to C80.
- Application Scenarios: Drilling high-strength concrete (C50–C80), such as bridge drilling, equipment installation on factory floors, and drilling load-bearing walls of high-rise buildings;
- Practical Effect: A decoration team used these bits to drill C60 concrete walls—their drilling efficiency was twice that of regular tungsten carbide bits, and the tip lifespan was extended threefold, reducing the time spent changing bits frequently.
2. Titanium-Coated Tungsten Carbide Bits
A thin titanium film is plated on the surface of regular tungsten carbide tips. The titanium film reduces friction between the tip and concrete during drilling, slowing down overheating and extending durability.
- Application Scenarios: Deep-hole drilling (≥150mm) in C40–C50 concrete, such as installing large wardrobes or outdoor air conditioning brackets;
- Personal Experience: I once helped a friend drill an 180mm deep hole in his C40 balcony wall. The titanium-coated tungsten carbide bit was twice as fast as a regular one, and the tip only slightly heated up after drilling—no cooling was needed to continue using it.
3. SDS Plus Tungsten Carbide Bits
This is not an upgrade to the tip, but an optimization of the shank structure: The shank is designed with dedicated grooves that can lock into SDS hammer drills. During drilling, the drill produces both rotation and impact, providing additional power to the bit.
- Application Scenarios: Large-hole drilling (≥12mm) in C30–C60 concrete, such as laying water pipes or electrical conduits;
- Advantage: Drilling a 16mm hole with a regular tungsten carbide bit requires pressing hard with both hands, while the SDS Plus version can be operated with one hand. It also significantly reduces vibration, reducing hand fatigue.
Conclusion: Choosing a Drill Bit Doesn’t Have to Be Hard—Remember These 3 Core Principles
- Small-scale, low-intensity tasks (C15–C20, ≤8mm holes): HSS-Co can be used for emergencies, but prioritize basic tungsten carbide bits to avoid frequent bit changes;
- Regular, medium-intensity tasks (C25–C40, ≤12mm holes): Use standard tungsten carbide bits directly—no need to consider other alloys, as they offer the best cost-effectiveness;
- High-intensity, large/deep hole tasks (C50+, ≥12mm holes): Choose diamond-tungsten carbide composite bits or SDS Plus bits to boost efficiency and reduce wear.
Many people choose the wrong drill bit not because of the product itself, but because they misjudge the concrete grade or are misled by claims that “a certain alloy is more efficient.” If you’re unsure about the concrete grade you’re drilling or need to purchase bits in bulk, feel free to contact us—we not only supply tungsten carbide bits but also customize a suitable plan based on your work scenario (e.g., concrete type, hole size, workload) to help you avoid detours.
If you’ve used tungsten carbide products or have questions about it, feel free to contact us! Whether you’re a fellow industry professional looking to consult about products or discuss technologies, or just curious about “why this drill bit is so tough,” we’re here to help answer your questions.
